Metal shelf – with LED lighting and power rail on one side

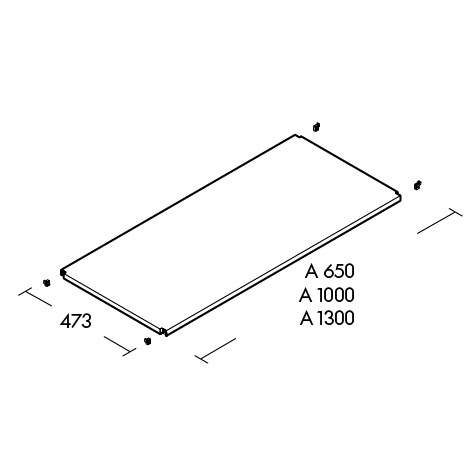

Product image (Metal shelf – with LED lighting and power rail on one side) Technical drawing (Metal shelf – with LED lighting and power rail on one side)

Systems

Is inserted between frames.
Metal shelf with integrated LED ­lighting and 3 V power rail on one side.
Nominal voltage = 24 V DC
- 5 W lamp + 3 W power rail
= 8 W for 650 mm axis
- 8 W lamp + 3 W power rail
= 11 W lamp for 1000 mm axis
- 11 W lamp + 3 W power rail
= 14 W for 1300 mm axis
Colour temperature: 3000 K /
4000 K SDCM3
Colour rendering index: 92
Luminous flux: 1000 lm/m with opal diffuser
Max. weight load = 40 kg
Max. display depth = 475 mm

black steel duro

  • Size: for axis 650 mm Part number 99210926
    €350.70
  • Size: for axis 1000 mm Part number 99211026
    €418.10
  • Size: for axis 1300 mm Part number 99211126
    €462.50

traffic white duro

  • Size: for axis 650 mm Part number 99210985
    €350.70
  • Size: for axis 1000 mm Part number 99211085
    €418.10
  • Size: for axis 1300 mm Part number 99211185
    €462.50
Delivery time approx. 6 weeks, ex works Weil am Rhein, Germany
Incl. shelf support.
Specify colour temperature of 3000 K or 4000 K when placing order.
