Metal shelf – with LED lighting on one side

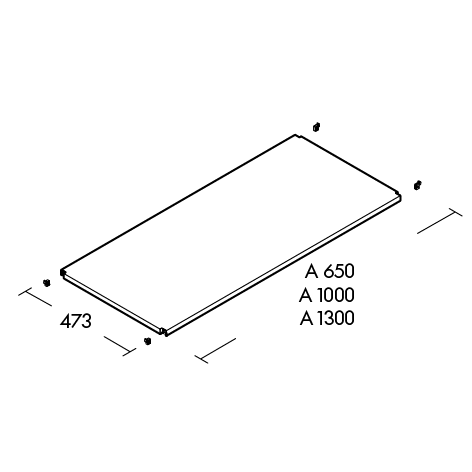

Product image (Metal shelf – with LED lighting on one side) Technical drawing (Metal shelf – with LED lighting on one side)

Systems

Is inserted between frames.
Metal shelf with integrated LED ­lighting on one side.
Nominal voltage = 24 V DC
- 1 × 5 W lamp for 650 mm axis
- 1 × 8 W lamp for 1000 mm axis
- 1 × 11 W lamp for 1300 mm axis
Colour temperature: 3000 K /
4000 K SDCM3
Colour rendering index: 92
Luminous flux: 1000 lm/m with opal diffuser
Max. weight load = 40 kg
Max. display depth = 475 mm

black steel duro

  • Size: for axis 650 mm Part number 99210326
    €312.40
  • Size: for axis 1000 mm Part number 99210426
    €379.80
  • Size: for axis 1300 mm Part number 99210526
    €424.30

traffic white duro

  • Size: for axis 650 mm Part number 99210385
    €312.40
  • Size: for axis 1000 mm Part number 99210485
    €379.80
  • Size: for axis 1300 mm Part number 99210585
    €424.30
Delivery time approx. 6 weeks, ex works Weil am Rhein, Germany
Incl. shelf support.
Specify colour temperature of 3000 K or 4000 K when placing order.
